Features:

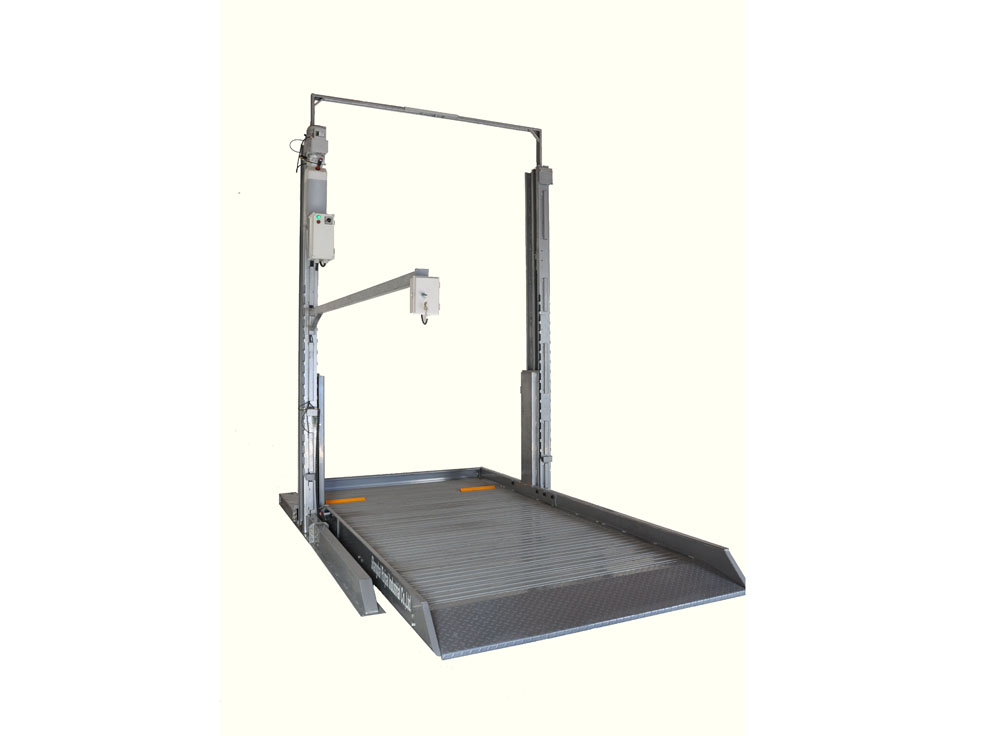

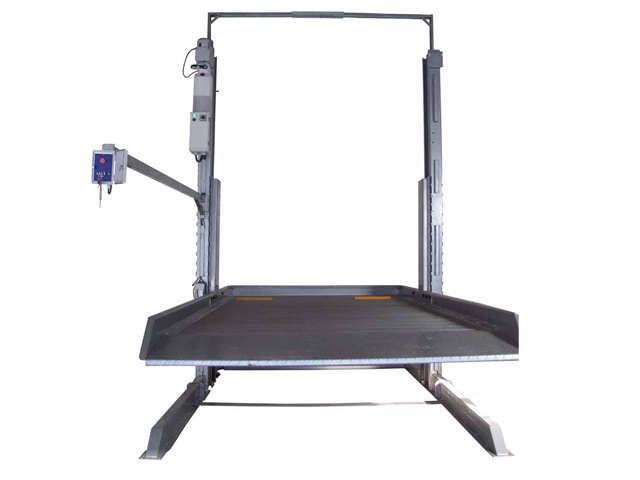

1. Storage lift for household or enterprise use to save half space.
2. Low ceiling design with advanced Hydraulic direct drive double stage cylinders for better lifting performance.
3. Column can be shared between two machines. With our special design can save precious space to suit design of building.
4. Modularized platform to save shipping, handling and installation cost.

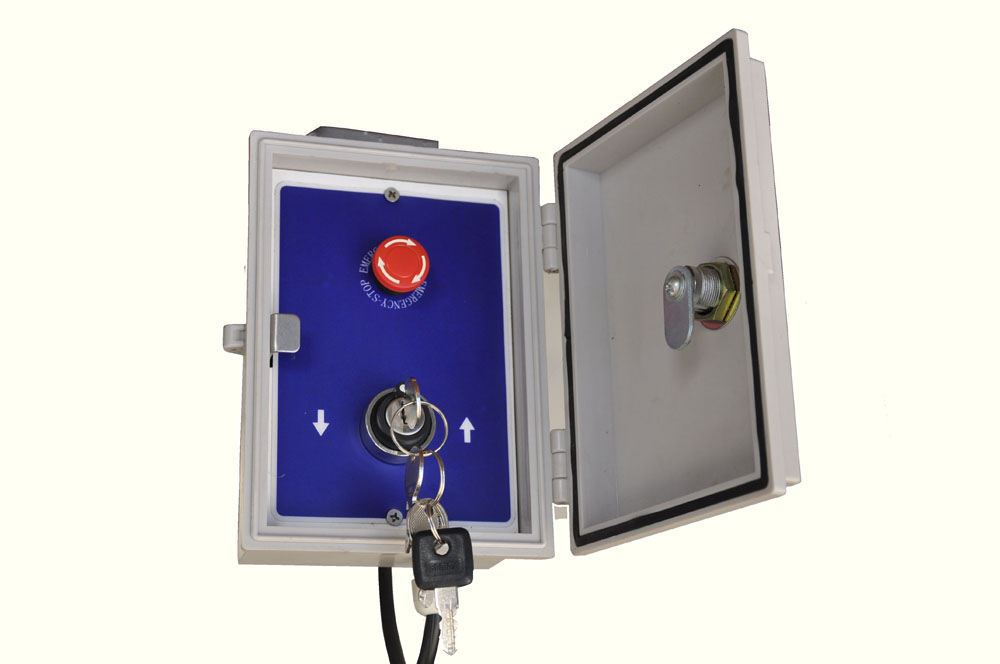

5. Optional 24V electrical locking release for customer safety.

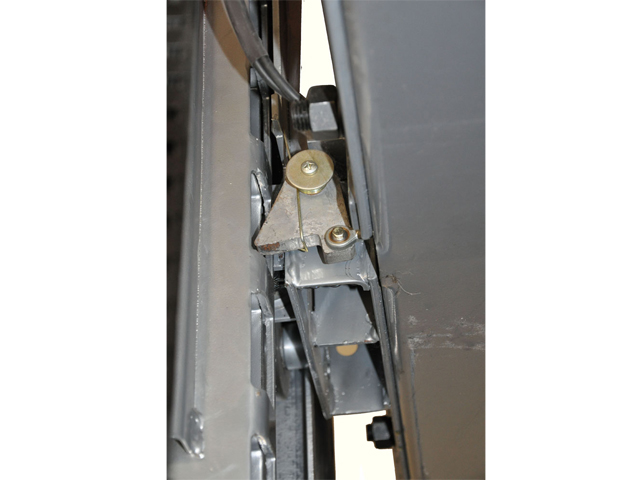

6. Multiple locking positions give protection during both rise up and lower down.
7. Parachute valve in every cylinder provide extra hydraulic safety.

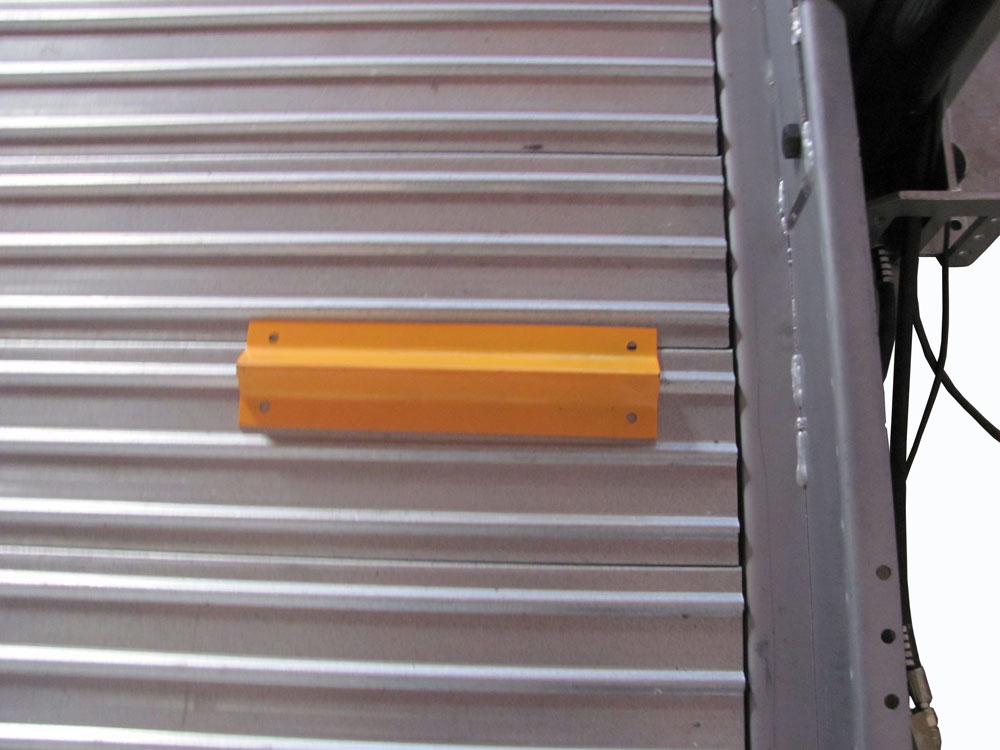

8. Corrugated deck guarantees safety of driver and vehicle under any weather condition.
| Platform | Length | 6000mm |
| Clear Height | ≥3000mm | |
| Width | 2120mm | |
| Vehicle Demensions | 5000×1850×1550mm | |
| Lifting Weight | ≦2700kg | |
| Lifting Motor Power | 1.5kw | |
| Lifting Time | 55-60 sec | |
| Operation Mode | key | |
| Driving Mode | Hydraulic | |
| Power | 380V 50Hz | |
